Gear Pumps
Blackmer internal gear pumps for viscous, hot and hard-to-seal liquids — the sealed G Series, the seal-less magnetic drive E Series, the V Series for asphalt and the compact M Series, from PSG, a Dover company.
Blackmer · PSG, a Dover company
Selection, supply and on-site service in Thailand. Official site: psgdover.com/blackmer ↗
Product range
Models we supply
Each card links to the Blackmer page for curves, dimensions and options.

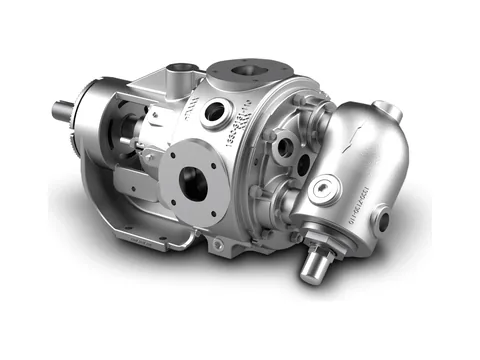

G Series
Sealed internal gear pump.
114 m³/h · 288 °C · 425,000 cSt · 13.8 bar

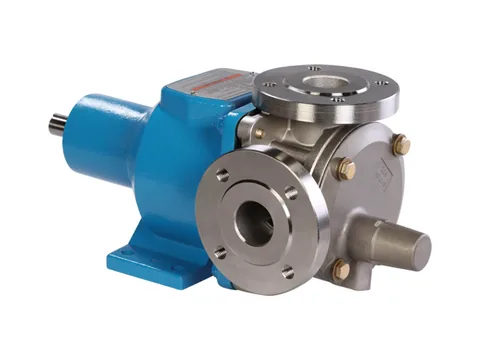

E Series
Seal-less magnetic drive internal gear pump.
114 m³/h · 260 °C · 50,000 cSt
V Series
Jacketed internal gear pump for asphalt.
20–102 m³/h · 6.9 bar · 232 °C
M Series
Motor-speed internal gear pump, couples directly to a standard motor.
0.8–6.8 m³/h · 14 bar · 204 °C
Applications
Typical duties
- Viscous liquids up to 425,000 cSt
- Hot liquids up to 288 °C
- High-value and hard-to-seal fluids
- Hazardous liquids that must not leak (E Series)
- Asphalt and bitumen (V Series)
Design
Materials & standards
- G Series: sealed
- E Series: seal-less magnetic drive
- V Series: steam / hot-oil jacketed
- M Series: direct motor drive, no reducer
Downloads
Brochures & documents
- G Series manual (IOM)PDF ↓
- G Series performance curvesPDF ↓
- G Series dimensional comparisonPDF ↓
- E Series manual (IOM)PDF ↓
- E Series performance curvesPDF ↓
- E Series white paperPDF ↓
- V Series brochurePDF ↓
- V Series manual (IOM)PDF ↓
- V Series performance curvesPDF ↓
- M Series brochurePDF ↓
- M Series manual (IOM)PDF ↓
Product information and images: Blackmer — psgdover.com/blackmer. Downloads open the manufacturer's own files.
