Glass-Lined Equipment
GMM Pfaudler glass-lined reactors, storage tanks, pipes and fittings for corrosive and high-purity chemical and pharmaceutical processes.
63–50,000litre reactors
−1/+6bar(g) vessel and jacket
200 °Cmaximum (−28.8 to 200 °C)
WWG 9100Pfaudler glass
Product range
Models we supply
Each card links to the GMM Pfaudler page for curves, dimensions and options.
Reactors and vessels
Piping

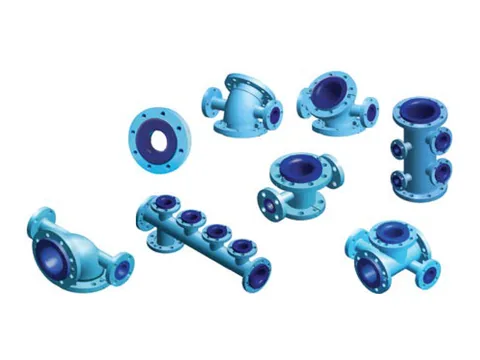

Glass-lined pipe and fittings
Pipes, elbows, tees and reducers.
20–250 NB · −1/+6 bar · −25 to 250 °C · DIN 2873
Applications
Typical duties
- Chemical and pharmaceutical reactions

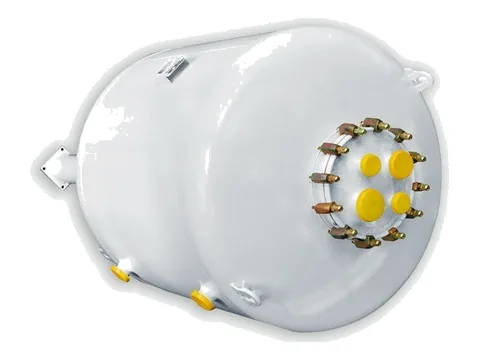

- Corrosive and high-purity storage
- Acid-resistant process piping
Design
Materials & standards
- DIN 28018 / 28105 / 28005
- DIN EN ISO 28721
- ASME VIII Div. 1
Downloads
Brochures & documents
- GMM Pfaudler glass-lined equipment (our copy, 2020)PDF
- Reactor eBrochures at gmmpfaudler.com (DIN AE / BE / CE, RS / RT / RX — registration)WEB
Ask us for reactor data sheets and drawings for your volume. Contact us →
Product information and images: GMM Pfaudler — gmmpfaudler.com. Downloads open the manufacturer's own files.
