ANSI Process Pumps

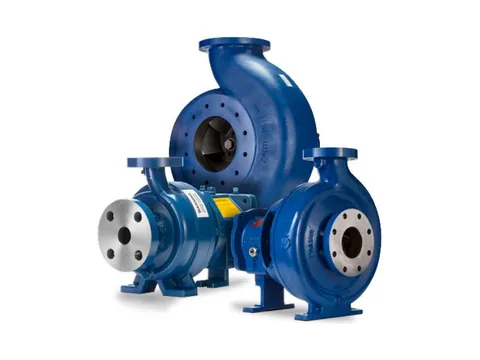

The Griswold 811 is an end-suction ANSI B73.1 process pump with more than 30 hydraulic selections. Its parts are interchangeable with the Goulds 3196, so it fits existing ANSI baseplates and spare-part stocks. Also the self-priming 811SP, the close-coupled 811CC, and the 850 and H Series water pumps.
Griswold · PSG, a Dover company
Selection, supply and on-site service in Thailand. Official site: psgdover.com/griswold ↗
Product range
Models we supply
Each card links to the Griswold page for curves, dimensions and options.
ANSI process pumps
811 ANSI Series
Standard ANSI process pump, back pull-out, 30+ selections.
Ductile iron · 316 SS · Alloy 20 · CD4MCuN

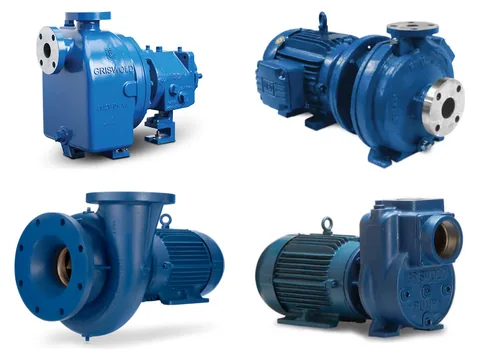

811SP Series
Self-priming ANSI process pump for harsh duty.
295 m³/h · 115 m · 260 °C · CD4MCuN
811CC Series
Close-coupled 811 — same hydraulics, compact footprint.
73 m³/h · 23 m · DI · 316 SS · CD4MCuN

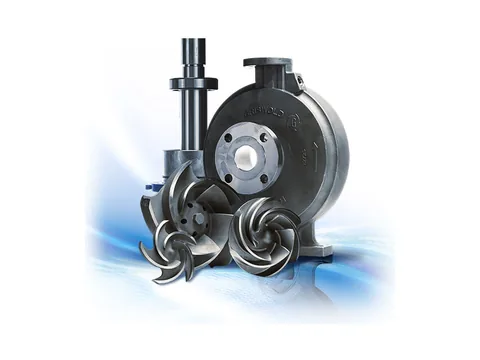

811 Parts
Interchangeable power ends and wet-end parts that fit Goulds 3196 installations.
Interchangeability guide and parts brochure below
Water pumps
850 Series
End-suction pump for water supply and transfer, NSF 50 / 61.
874 m³/h · 131 m · 49 °C
H Series
Self-priming water pump, lifts up to 7.6 m (25 ft).
74 m³/h · 79 m · 7.6 bar
Applications
Typical duties
- Chemical and petrochemical process transfer
- Acids, caustics and solvents (alloy selection)
- Hot liquids up to 260 °C
- Replacement of worn ANSI pumps without changing the baseplate
- Water supply, transfer and self-priming duty (850, H)
Design
Materials & standards
- ASME B73.1 / HI 14.6
- Wetted materials: ductile iron, 316 SS, Alloy 20, CD4MCuN
- Parts interchangeable with Goulds 3196
Downloads
Brochures & documents
- 811 brochurePDF ↓
- 811 installation & operation manualPDF ↓
- 811 performance curvesPDF ↓
- Low-flow curvesPDF ↓
- Pump interchangeability guidePDF ↓
- 811 parts brochurePDF ↓
- 811SP brochurePDF ↓
- 811CC manual (IOM)PDF ↓
- 850 Series brochurePDF ↓
- H Series brochurePDF ↓
Product information and images: Griswold — psgdover.com/griswold. Downloads open the manufacturer's own files.
Related
Related products
Talk to an engineer
Send us your duty
Medium, flow, head, temperature and pressure — we select the right model and quote from Bangkok or Rayong.
