Sealless Magnetic Drive Pump

Chemical transfer, unloading, circulation, filtration, cleaning,

etching, and various surface treatment and water treatment

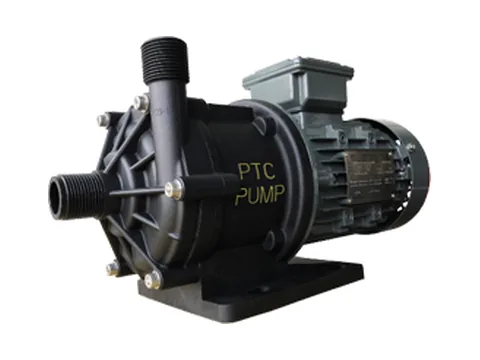

PTC-100 PT-C251

Material: GFRPP / CFRETFE
Max. Head: 21.4m
Max. Capacity: 160L/m
Motor Power: 0.25~0.75kw

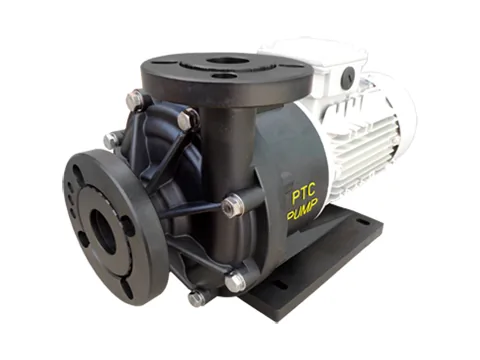

PTC-400 PTC675

Material: GFRPP / CFRETFE
Max. Head: 46m
Max. Capecity 1006L/m
Motor Power:0.37~7.5kw

Introduction

PTCXPUMP series provides engineering plastics material for GFR-PP and CFR-ETFE, corrosion resistant characteristics and sealless structure design. Our products exhibit no leakage problem and have been widely used to transfer chemical liquid, such as corrosive, toxic, flammable or explosive dangerous chemicals.

The product components include variety of innovative designs to improve stability and reduce operating vibration of the one-piece shaft supporter. The adjustable and universal flange design is to avoid leakage. Patented design of the flow channel circulation through the bearing system is to release heat to prevent temperature rise from the mechanical heat generated by rotation. The rear casing provides an anti-vortex design structure to avoid leakage by impurities abrasion surface of the rear casing.

Catalog
Feature

Material

Material GFR-PP and CFR-ETFE, made with the best raw materials, are available for selection to ensure exceptional corrosion resistance.

Front Casing

Adjustable flange and universal design for ANSI, JIS and DIN specifics are for easy pipeline connection.

Impeller + Inner Magnet

One-piece design of impeller with inner magnet increases stability in operation.

Anti-Vortex

Anti-vortex design for rear casing is to prevent abrasion rear casing surface caused by impurity substances.

Outer Magnet

Outer magnet surface with anti-corrosion coating is to avoid corrosion caused by external environmental influences.

Bearing

The patented design of the flow channel circulation allows chemical to quickly pass through with the dissipation heat and to prevent chemical crystallization.

Shaft Support

One-piece shaft supporter injection is to reduce operational vibration which may cause fall-offs.

Shaft

Two point support increases pump durability and reduces operating vibration.

Rear Casing

Special structure design without extra metal supporter is to provide better pressure resistance and durability.

Adapter

Patented design of polypropylene material adapter provides excellent corrosion resistance and is light weighted. The installation of motor is designed for standard IEC motor frames, closed coupled design no shaft alignment required.

Specifications

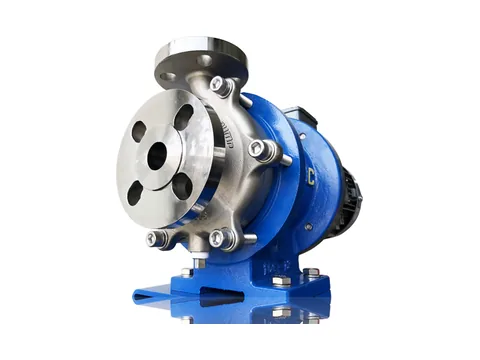

Metallic Stainless Steel Magnetic Drive Pump

PM Series

Max. capacity : 81L/min (50/60Hz)

Max. head : 22m(50Hz) / 30m(60Hz)

Motor : 90~550W

Application temperature : -80~280°C

    PS Series

    Max. capacity : 850L/min (50/60Hz)

    Max. head : 55.7m(50Hz) / 68m(60Hz)

    Motor : 0.75~7.5KW

    Application temperature : -80~280°C

      PL Series

      Max. capacity : 1901L/min(50Hz) / 2011L/min(60Hz)

      Max. head : 91.3m(50Hz) / 132.5(60Hz)

      Motor : 5.5~18.5KW

      Application temperature : -80~280°C

        Feature
        Catalog

        PW Series

        Max. capacity: 49L/min(50Hz) / 53L/min(60Hz)

        Max. head : 78m(50Hz) / 108m(60Hz)

        Motor : 0.75~3.7KW

        Application temperature : -80~280°C

          • Sealless structure, non-seal with magnetic drive design for leakage-free.
          • Protect the environment and user safety.
          • The standard material uses metallic stainless steel SUS316L, which provides better corrosion resistance.
          • Other special alloys are provided for optional selection.
          • Commonly used in transferring corrosive, toxic, flammable, or explosive chemicals.
          • High-efficiency design to reduce energy consumption when operating.
          • High component durability, low maintenance requirements, and cost savings.
          • Internal flow channels provide fast cooling, extending the lifespan.
          • EU CE certification / ATEX explosion-proof certification
          • Provide maintenance services for the full series of products.
          • Temperature: -80°C ~ +280°C

          Metallic Stainless Steel for SUS316L

          Sealless Magnet Drive Pump

          General industry for transfer chemical, capable with high temperature up to 280°C



            Introduction

            Environmental protection and user safety has been always the main focus of PTCXPUMP sealless magnetic drive pump product development. The design structure in form of non-seal with sealless, is mainly to solve the problem of VOCs leakage from mechanical seal pumps.

              Feature

              • Simple structure for easy maintenance.

              • Non-seal for sealless design with leakage free feature.

              • Anti-vortex design for internal flow channel.

              • Interchangeable parts design, reducing the number of spare parts purchased.

              • Standard material provides SUS316L, alloy20 and Has-C for optional selection.

              Operating Range

              • Capacity up to 3200 L/m.

              • Head up to 140 m.

              • Viscosity up to 300 cp.

              • Specific Gravity up to 2.

              • Motor output range from 0.09 kw ~ 110 kw.

              • Temperature use range from minus 80 degree to 280 degree Celsius.

              • Universal flange design applies with ANSI Class 150, JIS 10K and DIN PN16.

              • Pump material with SUS316L(standard), Alloy20(optional), Has-C equivalent (Optional)

              Pump Series Types

              • Small, medium and large capacity.

              • Regenerative turbine type for high head and low flow rate.

              • Jacket type maintain temperature for process chemical.

              • Open impeller for handling slurries and low NPSHr

              • Multi-stage for two stage impellers, applied to high head and large flow rate.

              • ISO2858 compliant with coupling type, motor power up to 110KW.

              Application of chemicals

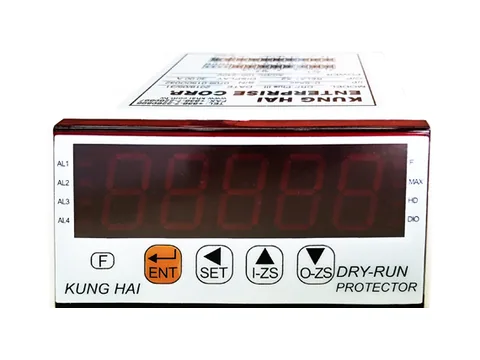

              Dry Run Protector

              DRY RUN PROTECTOR

              Current and power type are available for selectio,

              To prevent the pump failure during abnormal

              operating or dry running

                Introduction

                It is important to ensure pump runs well and avoid dry running. It is important to install a dry running protection device which main function is to monitor the current or power of the pump during operation. As soon as the operating current or use of electricity is beyond the setting range, the device will stop the pump immediately to prevent the motor from overload or dry running, which is to avoid pump failure and costly production downtime.

                  Feature

                  • To provide current and power type for selection.

                  • To protect the pump during abnormal operation.

                  • To prevent motor overloading or underloading.

                  • To prevent pump dry running for long time.

                  • Compact size for easy setup and install.
